Divisor de tubo rotativo PT 200

¡Solicite una oferta gratis y sin compromiso!

Marque los artículos que desea agregar a la lista de solicitud de oferta. Usted puede seleccionar artículos en cualquier página de producto. Después de haber añadido un artículo, aparece la lista de solicitud en la esquina derecha superior de la página.

Solicitud general

¿No está seguro de qué artículos necesita o prefiere un presupuesto general?

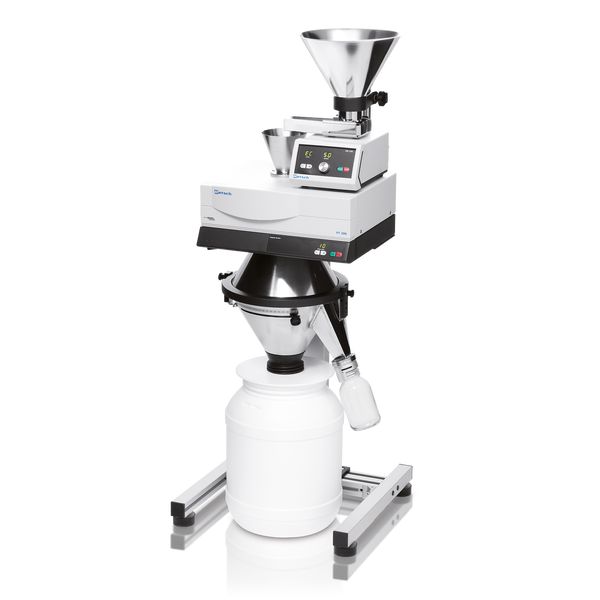

Divisor de tubo rotativo PT 200

PT 200 drive unit
incl. 10 sample bottles 500 ml and collecting receptacle 26 litres
(please order vibratory feeder, feeding kit and bottom cone separately)
40.412.0004
PT 200 unidad motriz100–240 V, 50/60 Hz


Conos inferiores y accesorios PT 200

Ayuda para la elección
Ayuda para la elección
The maximum dividing ratio depends on the maximum slot width which can be set on the bottom cone. This differs between the three bottom cones which are available.

The smallest dividing ratio depends upon the maximum particle size of the sample since the slot width should be at least 3 times wider than the maximum particle size. This means that smaller fractions can be taken from smaller particle sizes.

The slot width “X” to be set can be calculated from the ratio of the required fractional amount “QT” to the initial sample amount “QA” multiplied by the fixed pitch circumference “U” of the bottom cone (U = 795 mm for all bottom cones).

X = (QT/QA) x U

Example:

A representative sample of 200 ml is to be taken from an initial sample amount

of 5000 ml (dividing ratio 1:25). X = (200 ml / 5000 ml) x 795 mm = 32 mm. This means that the slot width must be set to 32 mm.

Please note: The sample amount should be sufficiently large to represent the initial amount.

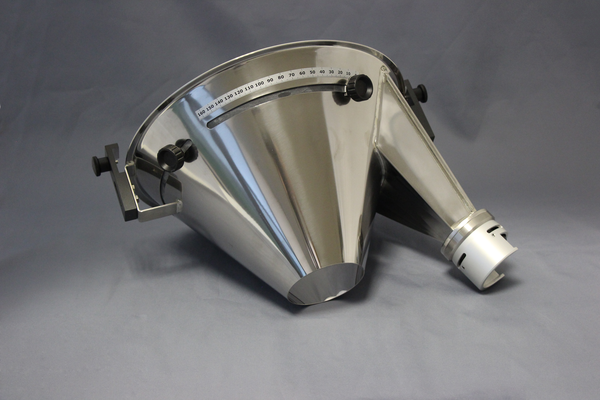

42.787.0010Bottom cone with 1 quick-release sample outlet, GL 55 thread,
slot width 159 mm, adjustable dividing ratio max. 1 : 5

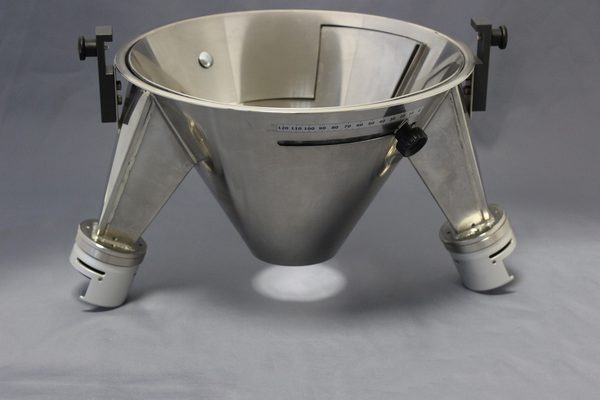

42.787.0011Bottom cone with 2 quick-release sample outlets, GL 55 thread,
slot width 110 mm, adjustable dividing ratio max. 2 x 1 : 7.2
42.787.0012Bottom cone with 3 quick-release sample outlets, GL 55 thread,
slot width  53 mm, adjustable dividing ratio max. 3 x 1 : 15

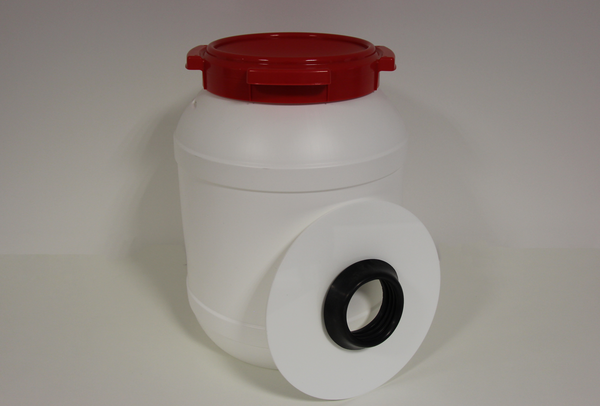

22.003.0013Collecting receptacle, 26 litres, plastic
22.523.0001Sample bottles, GL 55 thread, 250 ml, 10 pieces
22.523.0002Sample bottles, GL 55 thread, 500 ml, 10 pieces


Accessories PT 200

99.200.0022IQ/OQ Documentation for PT 200


Vibratory Feeder DR 100 PT 200

DR 100 drive unit (please order feeding kit sieve separately)
70.938.0001
DR 100 unidad motriz220–240 V, 50 Hz
70.938.0002
DR 100 unidad motriz110–120 V, 60 Hz
72.020.0022Feeding kit DR 100/3.5 litres for PT 200,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute,
hopper 3.5 litres, fixture for hopper and data cable
72.020.0023Feeding kit DR 100/22 litres for PT 200,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute,
hopper 22 litres, fixture for hopper and data cable
