Tamizadora AS 450 control

• Accesorios para tamices analíticos

• Ø 400 mm x altura 65 mm, ISO 3310/1

• Ø 450 mm x altura 100 mm, ISO 3310/1

• Ø 400 mm x altura 65 mm, ASTM E 11

• Ø 450 mm x altura 100 mm, ASTM E 11

¡Solicitar una oferta sin compromiso!

En cada página de producto hay la pestaña "datos para pedidos & solicitud de oferta". Por favor, marque los artículos por los que desea recibir una oferta. Después de haber recibido sus datos, le mandarémos lo más pronto posible una oferta sin compromiso.

Los enlaces siguientes le llevan directamente a las páginas "datos para pedidos & solicitud de oferta" de cada producto:

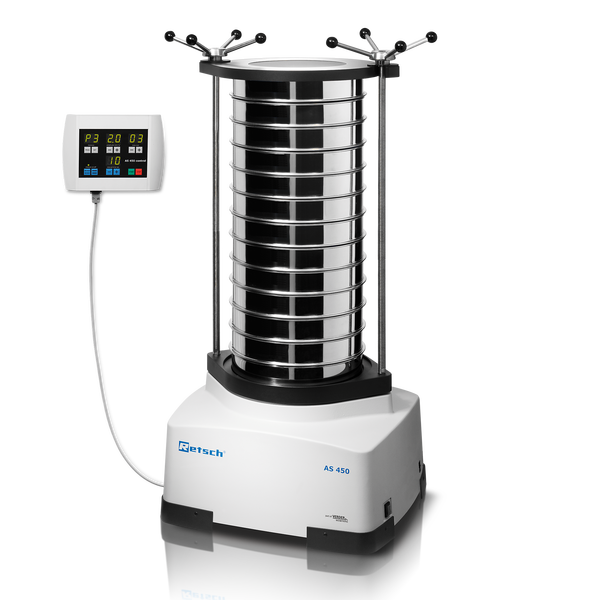

Vibratory Sieve Shaker AS 450
for test sieves 400/450 mm (please order clamping device (AS 450 control), test sieves and collecting pan separately)
30.026.0001		AS 450 control, 230 V, 50/60 Hz,, without clamping device
Modelos con diferente voltaje al mismo precio bajo demanda.

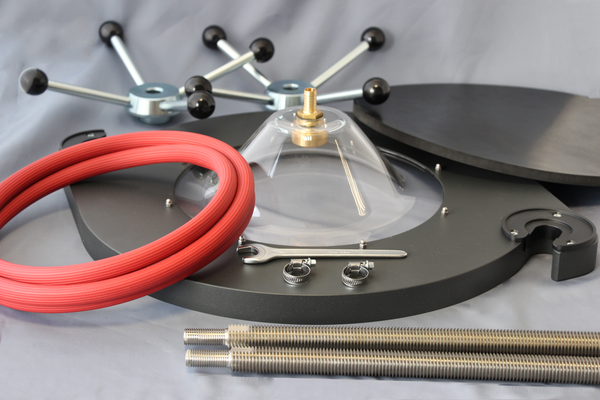

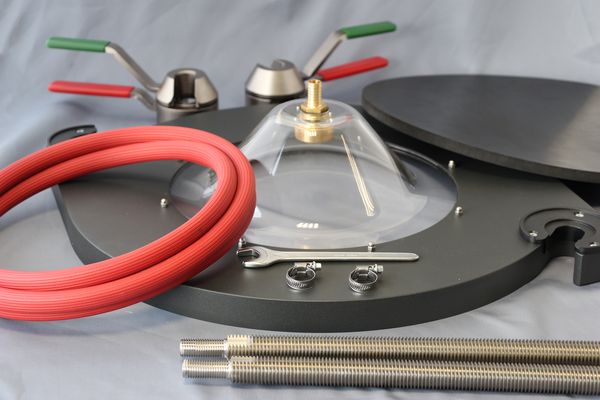

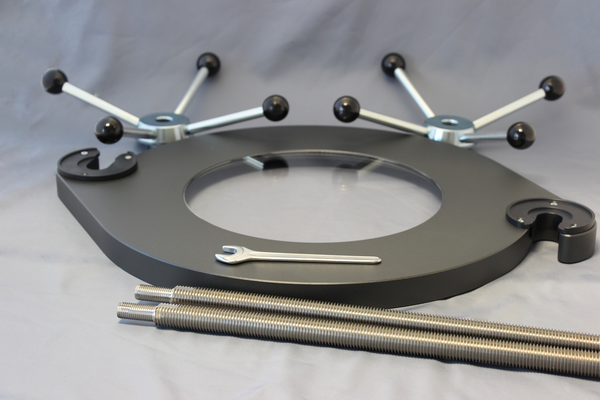

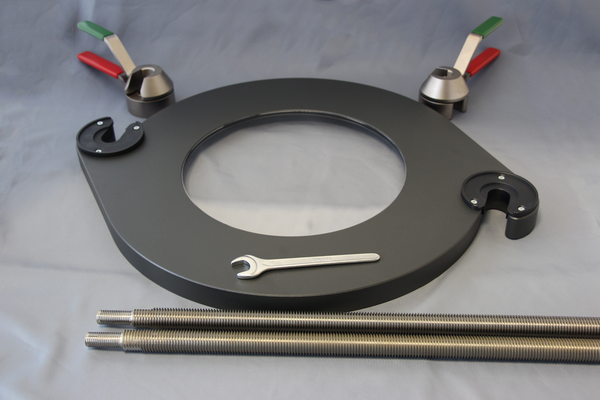

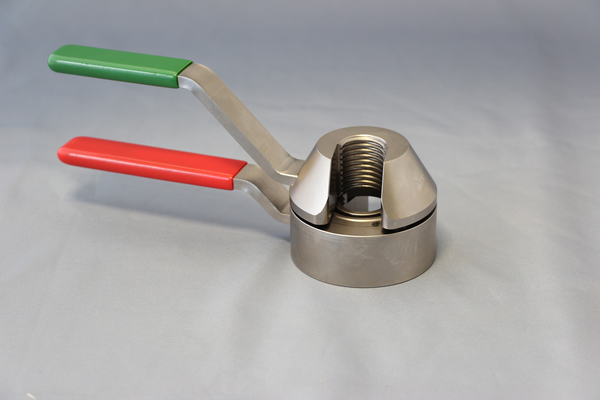

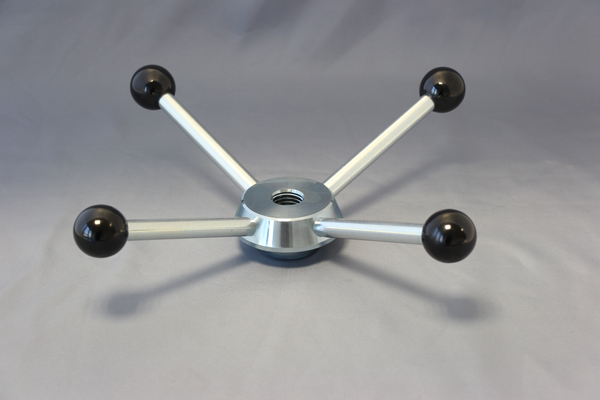

Clamping devices AS 450 control
32.662.0015		Dispositivo de fijación “standard”, para tamices de Ø 400/450 mm
32.662.0016		Dispositivo de fijación “confort”, para tamices de Ø 400/450 mm
32.662.0017		Dispositivo universal para tamizado en húmedo “standard”, para tamices de Ø 400/450 mm
32.662.0018		Dispositivo universal para tamizado en húmedo “confort”, para tamices de Ø 400/450 mm
Juegos de tamices AS 450
60.166.000998		Sieve stack consisting of 10 test sieves (ISO 3310-1), 400 mm Ø, 65 mm height (63 µm, 125 µm, 250 µm, 500 µm, 1 mm, 2 mm, 4 mm, 8 mm, 16 mm, 31.5 mm) and collecting pan
60.168.000999		Sieve stack consisting of 7 test sieves (ISO 3310-1), 450 mm Ø, 100 mm height (63 µm, 125 µm, 250 µm, 500 µm, 1 mm, 2 mm, 4 mm) and collecting pan
60.167.000998		Sieve stack consisting of 10 test sieves (ASTM E11), 400 mm Ø, 65 mm height, (230 mesh, 120 mesh, 60 mesh, 35 mesh, 18 mesh, 10 mesh, 5 mesh, 5/16”, 5/8”, 1.1/4”) and collecting pan
60.169.000999		Sieve stack consisting of 7 test sieves (ASTM E11), 450 mm Ø, 100 mm height (230 mesh, 120 mesh, 60 mesh, 35 mesh, 18 mesh, 10 mesh, 5 mesh) and collecting pan
Accesorios para tamices analíticos
Tamices analíticos de Ø 400 mm
60.010.000400		Bandeja colectora, acero inoxidable, 400 mm Ø, altura 65 mm
60.220.000400		bandeja intermedia, acero inoxidable, 400 mm Ø, altura 65 mm
60.935.000400		anillo intermedio, acero inoxidable, 400 mm Ø, altura 65 mm
60.107.000400		Sieve lid, acero inoxidable, 400 mm Ø
69.440.0070		bandeja colectora con salida, acero inoxidable, 400 mm Ø, altura 70 mm
69.421.000400		anillo de desgasificación para tamizado en húmedo, acero inoxidable, 400 mm Ø, altura 65 mm
05.114.0048		O-ring for test sieves, 400 mm Ø
Tamices analíticos de Ø 450 mm
60.010.000450		Bandeja colectora, acero inoxidable, 450 mm Ø, altura 50 mm
60.220.000450		bandeja intermedia, acero inoxidable, 450 mm Ø, altura 100 mm
60.935.000450		anillo intermedio, acero inoxidable, 450 mm Ø, altura 100 mm
60.107.000450		Sieve lid, acero inoxidable, 450 mm Ø
69.445.0084		bandeja colectora con salida, acero inoxidable, 450 mm Ø, altura 85 mm
69.421.000450		anillo de desgasificación para tamizado en húmedo, acero inoxidable, 450 mm Ø, altura 100 mm
05.114.0012		O-ring for test sieves, 450 mm Ø
Tamices analíticos
Ø 400 mm x altura 65 mm
ISO 3310/1
de acero inoxidable con tejido metálico
60.166.000025		25 µm *)
60.166.000032		32 µm *)
60.166.000036		36 µm
60.166.000038		38 µm
60.166.000040		40 µm *)
60.166.000045		45 µm
60.166.000050		50 µm *)
60.166.000053		53 µm
60.166.000056		56 µm
60.166.000063		63 µm *)
60.166.000071		71 µm
60.166.000075		75 µm
60.166.000080		80 µm *)
60.166.000090		90 µm
60.166.000100		100 µm *)
60.166.000106		106 µm
60.166.000112		112 µm
60.166.000125		125 µm *)
60.166.000140		140 µm
60.166.000150		150 µm
60.166.000160		160 µm *)
60.166.000180		180 µm
60.166.000200		200 µm *)
60.166.000212		212 µm
60.166.000224		224 µm
60.166.000250		250 µm *)
60.166.000280		280 µm
60.166.000300		300 µm
60.166.000315		315 µm *)
60.166.000355		355 µm
60.166.000400		400 µm *)
60.166.000425		425 µm
60.166.000450		450 µm
60.166.000500		500 µm *)
60.166.000560		560 µm
60.166.000600		600 µm
60.166.000630		630 µm *)
60.166.000710		710 µm
60.166.000800		800 µm *)
60.166.000850		850 µm
60.166.000900		900 µm
60.166.001000		1,00 mm *)
60.166.001120		1,12 mm
60.166.001180		1,18 mm
60.166.001250		1,25 mm *)
60.166.001400		1,40 mm
60.166.001600		1,60 mm *)
60.166.001700		1,70 mm
60.166.001800		1,80 mm
60.166.002000		2,00 mm *)
60.166.002240		2,24 mm
60.166.002360		2,36 mm
60.166.002500		2,50 mm *)
60.166.002800		2,80 mm
60.166.003150		3,15 mm *)
60.166.003350		3,35 mm
60.166.003550		3,55 mm
60.166.004000		4,00 mm *)
60.166.004500		4,50 mm
60.166.004750		4,75 mm
60.166.005000		5,00 mm *)
60.166.005600		5,60 mm
60.166.006300		6,30 mm *)
60.166.006700		6,70 mm
60.166.007100		7,10 mm
60.166.008000		8,00 mm *)
60.166.009000		9,00 mm
60.166.009500		9,50 mm
60.166.010000		10,00 mm *)
60.166.011200		11,20 mm
60.166.012500		12,50 mm *)
60.166.013200		13,20 mm
60.166.014000		14,00 mm
60.166.016000		16,00 mm *)
60.166.018000		18,00 mm
60.166.019000		19,00 mm
60.166.020000		20,00 mm *)
60.166.022400		22,40 mm
60.166.025000		25,00 mm *)
60.166.026500		26,50 mm
60.166.028000		28,00 mm
60.166.031500		31,50 mm *)
60.166.035500		35,50 mm
60.166.037500		37,50 mm
60.166.040000		40,00 mm *)
60.166.045000		45,00 mm
60.166.050000		50,00 mm *)
60.166.053000		53,00 mm
60.166.056000		56,00 mm
60.166.063000		63,00 mm *)
60.166.071000		71,00 mm
60.166.075000		75,00 mm
60.166.080000		80,00 mm *)
60.166.090000		90,00 mm
60.166.100000		100,00 mm *)
60.166.106000		106,00 mm
60.166.112000		112,00 mm
60.166.125000		125,00 mm *)
Ø 450 mm x altura 100 mm
ISO 3310/1
de acero inoxidable con tejido metálico
60.168.000036		36 µm
60.168.000038		38 µm
60.168.000040		40 µm *)
60.168.000045		45 µm
60.168.000050		50 µm *)
60.168.000053		53 µm
60.168.000056		56 µm
60.168.000063		63 µm *)
60.168.000071		71 µm
60.168.000075		75 µm
60.168.000080		80 µm *)
60.168.000090		90 µm
60.168.000100		100 µm *)
60.168.000106		106 µm
60.168.000112		112 µm
60.168.000125		125 µm *)
60.168.000140		140 µm
60.168.000150		150 µm
60.168.000160		160 µm *)
60.168.000180		180 µm
60.168.000200		200 µm *)
60.168.000212		212 µm
60.168.000224		224 µm
60.168.000250		250 µm *)
60.168.000280		280 µm
60.168.000300		300 µm
60.168.000315		315 µm *)
60.168.000355		355 µm
60.168.000400		400 µm *)
60.168.000425		425 µm
60.168.000450		450 µm
60.168.000500		500 µm *)
60.168.000560		560 µm
60.168.000600		600 µm
60.168.000630		630 µm *)
60.168.000710		710 µm
60.168.000800		800 µm *)
60.168.000850		850 µm
60.168.000900		900 µm
60.168.001000		1,00 mm *)
60.168.001120		1,12 mm
60.168.001180		1,18 mm
60.168.001250		1,25 mm *)
60.168.001400		1,40 mm
60.168.001600		1,60 mm *)
60.168.001700		1,70 mm
60.168.001800		1,80 mm
60.168.002000		2,00 mm *)
60.168.002240		2,24 mm
60.168.002360		2,36 mm
60.168.002500		2,50 mm *)
60.168.002800		2,80 mm
60.168.003150		3,15 mm *)
60.168.003350		3,35 mm
60.168.003550		3,55 mm
60.168.004000		4,00 mm *)
60.168.004500		4,50 mm
60.168.004750		4,75 mm
60.168.005000		5,00 mm *)
60.168.005600		5,60 mm
60.168.006300		6,30 mm *)
60.168.006700		6,70 mm
60.168.007100		7,10 mm
60.168.008000		8,00 mm *)
60.168.009000		9,00 mm
60.168.009500		9,50 mm
60.168.010000		10,00 mm *)
60.168.011200		11,20 mm
60.168.012500		12,50 mm *)
60.168.013200		13,20 mm
60.168.014000		14,00 mm
60.168.016000		16,00 mm *)
60.168.018000		18,00 mm
60.168.019000		19,00 mm
60.168.020000		20,00 mm *)
60.168.022400		22,40 mm
60.168.025000		25,00 mm *)
60.168.026500		26,50 mm
60.168.028000		28,00 mm
60.168.031500		31,50 mm *)
60.168.035500		35,50 mm
60.168.037500		37,50 mm
60.168.040000		40,00 mm *)
60.168.045000		45,00 mm
60.168.050000		50,00 mm *)
60.168.053000		53,00 mm
60.168.056000		56,00 mm
60.168.063000		63,00 mm *)
60.168.071000		71,00 mm
60.168.075000		75,00 mm
60.168.080000		80,00 mm *)
60.168.090000		90,00 mm
60.168.100000		100,00 mm *)
60.168.106000		106,00 mm
60.168.112000		112,00 mm
60.168.125000		125,00 mm *)
Ø 400 mm x altura 65 mm
ASTM E 11
de acero inoxidable con tejido metálico
60.167.000025		25 µm; 500 Mesh
60.167.000032		32 µm; 450 Mesh
60.167.000038		38 µm; 400 Mesh
60.167.000045		45 µm; 325 Mesh
60.167.000053		53 µm; 270 Mesh
60.167.000063		63 µm; 230 Mesh
60.167.000075		75 µm; 200 Mesh
60.167.000090		90 µm; 170 Mesh
60.167.000106		106 µm; 140 Mesh
60.167.000125		125 µm; 120 Mesh
60.167.000150		150 µm; 100 Mesh
60.167.000180		180 µm; 80 Mesh
60.167.000212		212 µm; 70 Mesh
60.167.000250		250 µm; 60 Mesh
60.167.000300		300 µm; 50 Mesh
60.167.000355		355 µm; 45 Mesh
60.167.000425		425 µm; 40 Mesh
60.167.000500		500 µm; 35 Mesh
60.167.000600		600 µm; 30 Mesh
60.167.000710		710 µm; 25 Mesh
60.167.000850		850 µm; 20 Mesh
60.167.001000		1,00 mm; 18 Mesh
60.167.001180		1,18 mm; 16 Mesh
60.167.001400		1,40 mm; 14 Mesh
60.167.001700		1,70 mm; 12 Mesh
60.167.002000		2,00 mm; 10 Mesh
60.167.002360		2,36 mm; 8 Mesh
60.167.002800		2,80 mm; 7 Mesh
60.167.003350		3,35 mm; 6 Mesh
60.167.004000		4,00 mm; 5 Mesh
60.167.004750		4,75 mm; 4 Mesh
60.167.005600		5,60 mm; 3.5 Mesh
60.167.006300		6,30 mm; 1/4 "
60.167.006700		6,70 mm; 0.265 "
60.167.008000		8,00 mm; 5/16 "
60.167.009500		9,50 mm; 3/8 "
60.167.011200		11,20 mm; 7/16 "
60.167.012500		12,50 mm; 1/2 "
60.167.013200		13,20 mm; 0.530 "
60.167.016000		16,00 mm; 5/8 "
60.167.019000		19,00 mm; 3/4 "
60.167.022400		22,40 mm; 7/8 "
60.167.025000		25,00 mm; 1 "
60.167.026500		26,50 mm; 1.06 "
60.167.031500		31,50 mm; 1 1/4 "
60.167.037500		37,50 mm; 1 1/2 "
60.167.045000		45,00 mm; 1 3/4 "
60.167.050000		50,00 mm; 2 "
60.167.053000		53,00 mm; 2.12 "
60.167.063000		63,00 mm; 2 1/2 "
60.167.075000		75,00 mm; 3 "
60.167.090000		90,00 mm; 3 1/2 "
60.167.100000		100,00 mm; 4 "
60.167.106000		106,00 mm; 4,24 "
60.167.125000		125,00 mm; 5 "
Ø 450 mm x altura 100 mm
ASTM E 11
de acero inoxidable con tejido metálico
60.169.000038		38 µm; 400 Mesh
60.169.000045		45 µm; 325 Mesh
60.169.000053		53 µm; 270 Mesh
60.169.000063		63 µm; 230 Mesh
60.169.000075		75 µm; 200 Mesh
60.169.000090		90 µm; 170 Mesh
60.169.000106		106 µm; 140 Mesh
60.169.000125		125 µm; 120 Mesh
60.169.000150		150 µm; 100 Mesh
60.169.000180		180 µm; 80 Mesh
60.169.000212		212 µm; 70 Mesh
60.169.000250		250 µm; 60 Mesh
60.169.000300		300 µm; 50 Mesh
60.169.000355		355 µm; 45 Mesh
60.169.000425		425 µm; 40 Mesh
60.169.000500		500 µm; 35 Mesh
60.169.000600		600 µm; 30 Mesh
60.169.000710		710 µm; 25 Mesh
60.169.000850		850 µm; 20 Mesh
60.169.001000		1,00 mm; 18 Mesh
60.169.001180		1,18 mm; 16 Mesh
60.169.001400		1,40 mm; 14 Mesh
60.169.001700		1,70 mm; 12 Mesh
60.169.002000		2,00 mm; 10 Mesh
60.169.002360		2,36 mm; 8 Mesh
60.169.002800		2,80 mm; 7 Mesh
60.169.003350		3,35 mm; 6 Mesh
60.169.004000		4,00 mm; 5 Mesh
60.169.004750		4,75 mm; 4 Mesh
60.169.005600		5,60 mm; 3.5 Mesh
60.169.006300		6,30 mm; 1/4 "
60.169.006700		6,70 mm; 0.265 "
60.169.008000		8,00 mm; 5/16 "
60.169.009500		9,50 mm; 3/8 "
60.169.011200		11,20 mm; 7/16 "
60.169.012500		12,50 mm; 1/2 "
60.169.013200		13,20 mm; 0.530 "
60.169.016000		16,00 mm; 5/8 "
60.169.019000		19,00 mm; 3/4 "
60.169.022400		22,40 mm; 7/8 "
60.169.025000		25,00 mm; 1 "
60.169.026500		26,50 mm; 1.06 "
60.169.031500		31,50 mm; 1 1/4 "
60.169.037500		37,50 mm; 1 1/2 "
60.169.045000		45,00 mm; 1 3/4 "
60.169.050000		50,00 mm; 2 "
60.169.053000		53,00 mm; 2.12 "
60.169.063000		63,00 mm; 2 1/2 "
60.169.075000		75,00 mm; 3 "
60.169.090000		90,00 mm; 3 1/2 "
60.169.100000		100,00 mm; 4 "
60.169.106000		106,00 mm; 4,24 "
60.169.125000		125,00 mm; 5 "

*) Serie principal R’10 según DIN 323

Reservado el derecho a modificaciones técnicas y errores.
