Tamizadora a chorro de aire AS 200 jet

• Ø 8" x altura 1", ISO 3310/1

• Ø 8" x altura 2", ASTM E 11

• Ø 8" x altura 1", ASTM E 11

¡Solicitar una oferta sin compromiso!

En cada página de producto hay la pestaña "datos para pedidos & solicitud de oferta". Por favor, marque los artículos por los que desea recibir una oferta. Después de haber recibido sus datos, le mandarémos lo más pronto posible una oferta sin compromiso.

Los enlaces siguientes le llevan directamente a las páginas "datos para pedidos & solicitud de oferta" de cada producto:

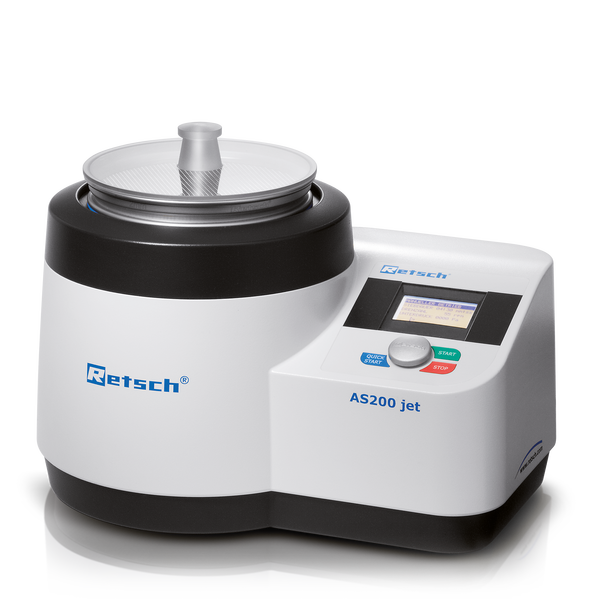

Tamizadora a chorro de aire AS 200 jet
for test sieves 203 mm (8”) Ø, with manual vacuum regulation, incl. lids for test sieves 1” and 2” height and rubber mallet (please order test sieve and vacuum cleaner separately)
30.027.0001		AS 200 jet, 100–240 V, 50/60 Hz, incl. test report acc. to EN 10204 2.2

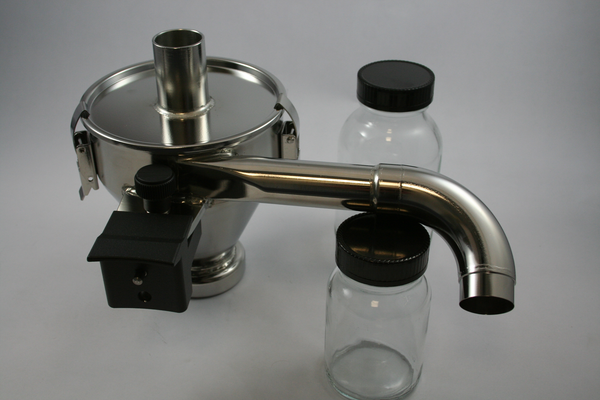

Cyclone AS 200 jet
32.935.0008		Cyclone with holder and collecting receptacle (250 ml and 500 ml sample bottle) (industrial vacuum cleaner GM 80 recommended)
Accesorios AS 200 jet

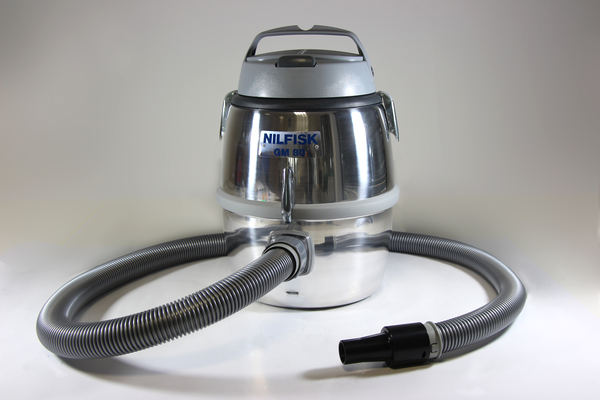

32.748.0004		Industrial vacuum cleaner GM 80, 230 V, 50/60 Hz (other electrical versions available)

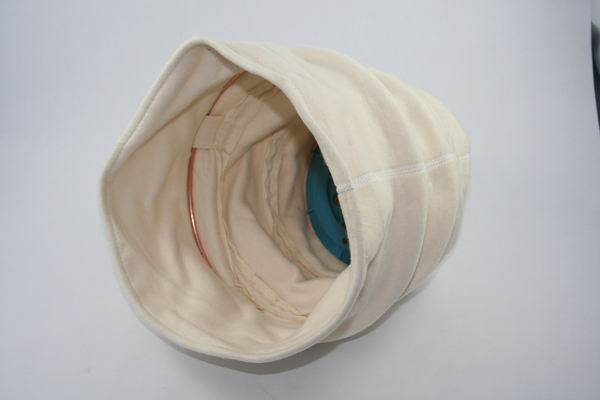

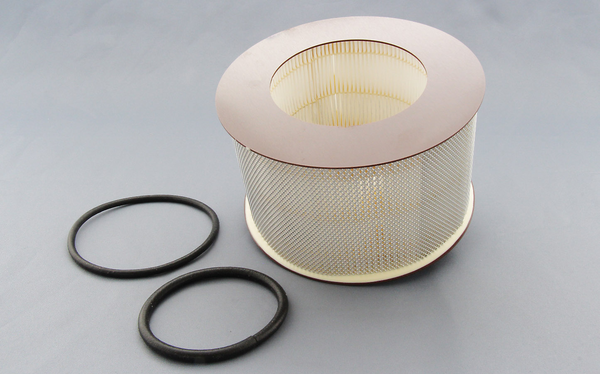

32.524.0010		Main filter for industrial vacuum cleaner GM 80, 1 piece

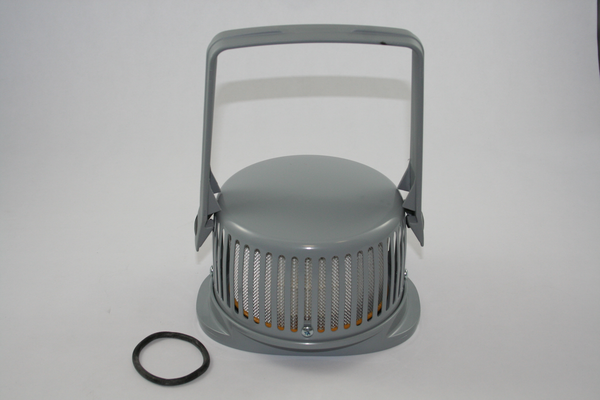

32.524.0011		HEPA filter unit for industrial vacuum cleaner GM 80, incl. 1 HEPA filter
32.524.0012		HEPA filter for industrial vacuum cleaner GM 80, 1 piece
32.100.0002		Regulador automático del vacío

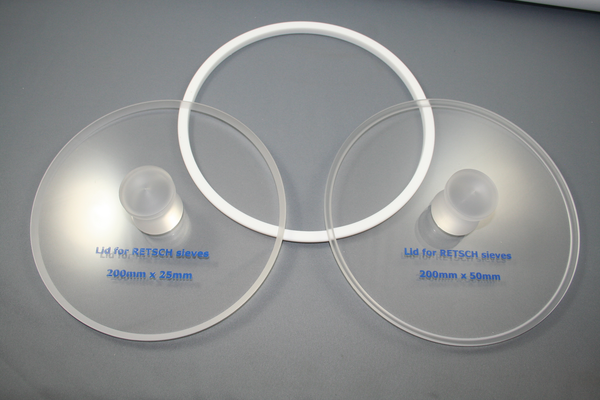

02.025.0070		Adapter and lids for test sieves 200 mm Ø x 50 mm and 200 mm Ø x 25 mm

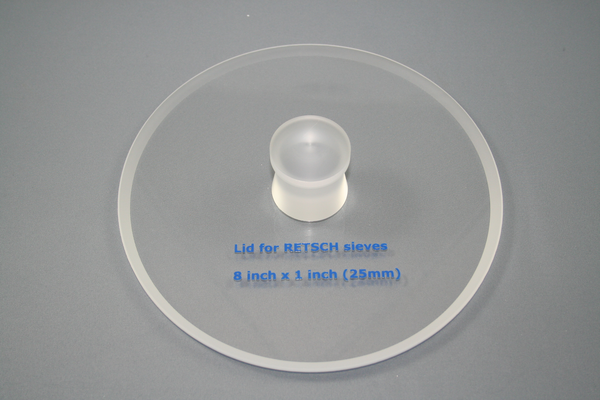

03.107.0487		Spare lid for test sieves 203 mm (8”) Ø x 1”

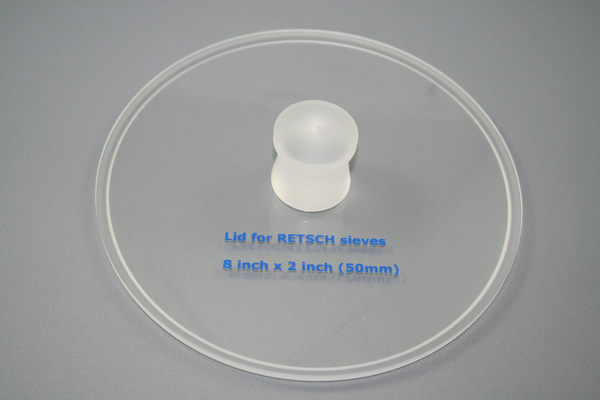

03.107.0448		Spare lid for test sieves 203 mm (8”) Ø x 2”
22.523.0001		Frascos, 250 ml, 10 unid.
22.523.0002		Sample bottles, 500 ml, 10 pieces
60.142.000010		Test sieve with electroformed sheet (ISO 3310-3), 203 mm Ø, 25 mm height, 10 µm
60.142.000016		Test sieve with electroformed sheet (ISO 3310-3), 203 mm Ø, 25 mm height, 16 µm
99.200.0003		IQ/OQ Documentation for AS 200 jet
Tamices analíticos
Ø 8" x altura 1"
ISO 3310/1
de acero inoxidable con tejido metálico
60.140.000020		20 µm *)
60.140.000025		25 µm *)
60.140.000032		32 µm *)
60.140.000036		36 µm
60.140.000038		38 µm
60.140.000040		40 µm *)
60.140.000045		45 µm
60.140.000050		50 µm *)
60.140.000053		53 µm
60.140.000056		56 µm
60.140.000063		63 µm *)
60.140.000071		71 µm
60.140.000075		75 µm
60.140.000080		80 µm *)
60.140.000090		90 µm
60.140.000100		100 µm *)
60.140.000106		106 µm
60.140.000112		112 µm
60.140.000125		125 µm *)
60.140.000140		140 µm
60.140.000150		150 µm
60.140.000160		160 µm *)
60.140.000180		180 µm
60.140.000200		200 µm *)
60.140.000212		212 µm
60.140.000224		224 µm
60.140.000250		250 µm *)
60.140.000280		280 µm
60.140.000300		300 µm
60.140.000315		315 µm *)
60.140.000355		355 µm
60.140.000400		400 µm *)
60.140.000425		425 µm
60.140.000450		450 µm
60.140.000500		500 µm *)
60.140.000560		560 µm
60.140.000600		600 µm
60.140.000630		630 µm *)
60.140.000710		710 µm
60.140.000800		800 µm *)
60.140.000850		850 µm
60.140.000900		900 µm
60.140.001000		1,00 mm *)
60.140.001120		1,12 mm
60.140.001180		1,18 mm
60.140.001250		1,25 mm *)
60.140.001400		1,40 mm
60.140.001600		1,60 mm *)
60.140.001700		1,70 mm
60.140.001800		1,80 mm
60.140.002000		2,00 mm *)
60.140.002240		2,24 mm
60.140.002360		2,36 mm
60.140.002500		2,50 mm *)
60.140.002800		2,80 mm
60.140.003150		3,15 mm *)
60.140.003350		3,35 mm
60.140.003550		3,55 mm
60.140.004000		4,00 mm *)
60.140.004500		4,50 mm
60.140.004750		4,75 mm
60.140.005000		5,00 mm *)
60.140.005600		5,60 mm
60.140.006300		6,30 mm *)
60.140.006700		6,70 mm
60.140.007100		7,10 mm
60.140.008000		8,00 mm *)
60.140.009000		9,00 mm
60.140.009500		9,50 mm
60.140.010000		10,00 mm *)
60.140.011200		11,20 mm
60.140.012500		12,50 mm *)
60.140.013200		13,20 mm
60.140.014000		14,00 mm
60.140.016000		16,00 mm *)
60.140.018000		18,00 mm
60.140.019000		19,00 mm
60.140.020000		20,00 mm *)
60.140.022400		22,40 mm
60.140.025000		25,00 mm *)
60.140.026500		26,50 mm
60.140.028000		28,00 mm
60.140.031500		31,50 mm *)
60.140.035500		35,50 mm
60.140.037500		37,50 mm
60.140.040000		40,00 mm *)
60.140.045000		45,00 mm
60.140.050000		50,00 mm *)
60.140.053000		53,00 mm
60.140.056000		56,00 mm
60.140.063000		63,00 mm *)
60.140.071000		71,00 mm
60.140.075000		75,00 mm
60.140.080000		80,00 mm *)
60.140.090000		90,00 mm
60.140.100000		100,00 mm *)
60.140.106000		106,00 mm
60.140.112000		112,00 mm
60.140.125000		125,00 mm *)
Ø 8" x altura 2"
ASTM E 11
de acero inoxidable con tejido metálico
60.150.000020		20 µm; 635 Mesh
60.150.000025		25 µm; 500 Mesh
60.150.000032		32 µm; 450 Mesh
60.150.000038		38 µm; 400 Mesh
60.150.000045		45 µm; 325 Mesh
60.150.000053		53 µm; 270 Mesh
60.150.000063		63 µm; 230 Mesh
60.150.000075		75 µm; 200 Mesh
60.150.000090		90 µm; 170 Mesh
60.150.000106		106 µm; 140 Mesh
60.150.000125		125 µm; 120 Mesh
60.150.000150		150 µm; 100 Mesh
60.150.000180		180 µm; 80 Mesh
60.150.000212		212 µm; 70 Mesh
60.150.000250		250 µm; 60 Mesh
60.150.000300		300 µm; 50 Mesh
60.150.000355		355 µm; 45 Mesh
60.150.000425		425 µm; 40 Mesh
60.150.000500		500 µm; 35 Mesh
60.150.000600		600 µm; 30 Mesh
60.150.000710		710 µm; 25 Mesh
60.150.000850		850 µm; 20 Mesh
60.150.001000		1,00 mm; 18 Mesh
60.150.001180		1,18 mm; 16 Mesh
60.150.001400		1,40 mm; 14 Mesh
60.150.001700		1,70 mm; 12 Mesh
60.150.002000		2,00 mm; 10 Mesh
60.150.002360		2,36 mm; 8 Mesh
60.150.002800		2,80 mm; 7 Mesh
60.150.003350		3,35 mm; 6 Mesh
60.150.004000		4,00 mm; 5 Mesh
60.150.004750		4,75 mm; 4 Mesh
60.150.005600		5,60 mm; 3.5 Mesh
60.150.006300		6,30 mm; 1/4 "
60.150.006700		6,70 mm; 0.265 "
60.150.008000		8,00 mm; 5/16 "
60.150.009500		9,50 mm; 3/8 "
60.150.011200		11,20 mm; 7/16 "
60.150.012500		12,50 mm; 1/2 "
60.150.013200		13,20 mm; 0.530 "
60.150.016000		16,00 mm; 5/8 "
60.150.019000		19,00 mm; 3/4 "
60.150.022400		22,40 mm; 7/8 "
60.150.025000		25,00 mm; 1 "
60.150.026500		26,50 mm; 1.06 "
60.150.031500		31,50 mm; 1 1/4 "
60.150.037500		37,50 mm; 1 1/2 "
60.150.045000		45,00 mm; 1 3/4 "
60.150.050000		50,00 mm; 2 "
60.150.053000		53,00 mm; 2.12 "
60.150.063000		63,00 mm; 2 1/2 "
60.150.075000		75,00 mm; 3 "
60.150.090000		90,00 mm; 3 1/2 "
60.150.100000		100,00 mm; 4 "
60.150.106000		106,00 mm; 4,24 "
60.150.125000		125,00 mm; 5 "
Ø 8" x altura 1"
ASTM E 11
de acero inoxidable con tejido metálico
60.141.000020		20 µm; 635 Mesh
60.141.000025		25 µm; 500 Mesh
60.141.000032		32 µm; 450 Mesh
60.141.000038		38 µm; 400 Mesh
60.141.000045		45 µm; 325 Mesh
60.141.000053		53 µm; 270 Mesh
60.141.000063		63 µm; 230 Mesh
60.141.000075		75 µm; 200 Mesh
60.141.000090		90 µm; 170 Mesh
60.141.000106		106 µm; 140 Mesh
60.141.000125		125 µm; 120 Mesh
60.141.000150		150 µm; 100 Mesh
60.141.000180		180 µm; 80 Mesh
60.141.000212		212 µm; 70 Mesh
60.141.000250		250 µm; 60 Mesh
60.141.000300		300 µm; 50 Mesh
60.141.000355		355 µm; 45 Mesh
60.141.000425		425 µm; 40 Mesh
60.141.000500		500 µm; 35 Mesh
60.141.000600		600 µm; 30 Mesh
60.141.000710		710 µm; 25 Mesh
60.141.000850		850 µm; 20 Mesh
60.141.001000		1,00 mm; 18 Mesh
60.141.001180		1,18 mm; 16 Mesh
60.141.001400		1,40 mm; 14 Mesh
60.141.001700		1,70 mm; 12 Mesh
60.141.002000		2,00 mm; 10 Mesh
60.141.002360		2,36 mm; 8 Mesh
60.141.002800		2,80 mm; 7 Mesh
60.141.003350		3,35 mm; 6 Mesh
60.141.004000		4,00 mm; 5 Mesh
60.141.004750		4,75 mm; 4 Mesh
60.141.005600		5,60 mm; 3.5 Mesh
60.141.006300		6,30 mm; 1/4 "
60.141.006700		6,70 mm; 0.265 "
60.141.008000		8,00 mm; 5/16 "
60.141.009500		9,50 mm; 3/8 "
60.141.011200		11,20 mm; 7/16 "
60.141.012500		12,50 mm; 1/2 "
60.141.013200		13,20 mm; 0.530 "
60.141.016000		16,00 mm; 5/8 "
60.141.019000		19,00 mm; 3/4 "
60.141.022400		22,40 mm; 7/8 "
60.141.025000		25,00 mm; 1 "
60.141.026500		26,50 mm; 1.06 "
60.141.031500		31,50 mm; 1 1/4 "
60.141.037500		37,50 mm; 1 1/2 "
60.141.045000		45,00 mm; 1 3/4 "
60.141.050000		50,00 mm; 2 "
60.141.053000		53,00 mm; 2.12 "
60.141.063000		63,00 mm; 2 1/2 "
60.141.075000		75,00 mm; 3 "
60.141.090000		90,00 mm; 3 1/2 "
60.141.100000		100,00 mm; 4 "
60.141.106000		106,00 mm; 4,24 "
60.141.125000		125,00 mm; 5 "

*) Serie principal R’10 según DIN 323

Reservado el derecho a modificaciones técnicas y errores.
