Molino de mortero RM 200

¡Solicite una oferta gratis y sin compromiso!

Marque los artículos que desea agregar a la lista de solicitud de oferta. Usted puede seleccionar artículos en cualquier página de producto. Después de haber añadido un artículo, aparece la lista de solicitud en la esquina derecha superior de la página.

Solicitud general

¿No está seguro de qué artículos necesita o prefiere un presupuesto general?

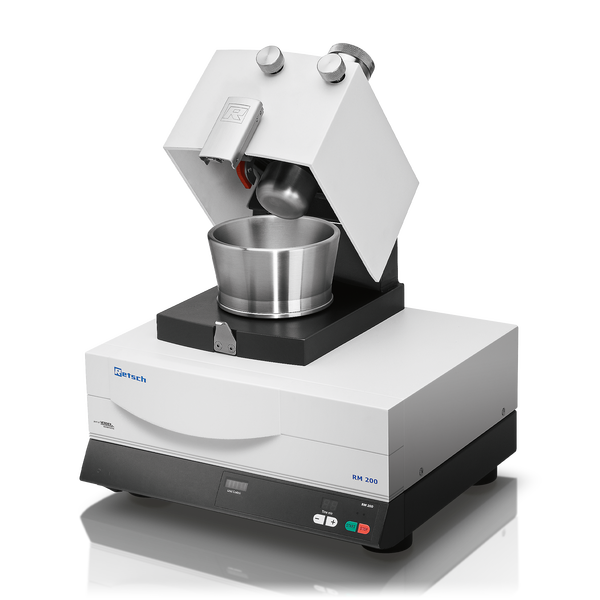

Molino de mortero RM 200

Mortar Grinder RM 200 complete with scraper of PU
(please order mortar and pestle separately)
20.455.0001
RM 200230 V, 50 Hz
Modelos con diferente voltaje al mismo precio bajo demanda.

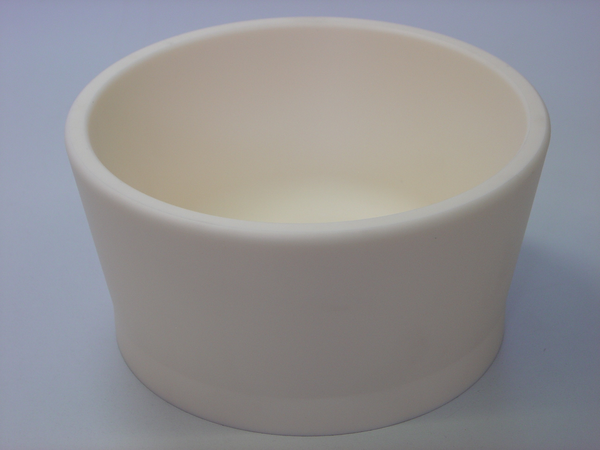

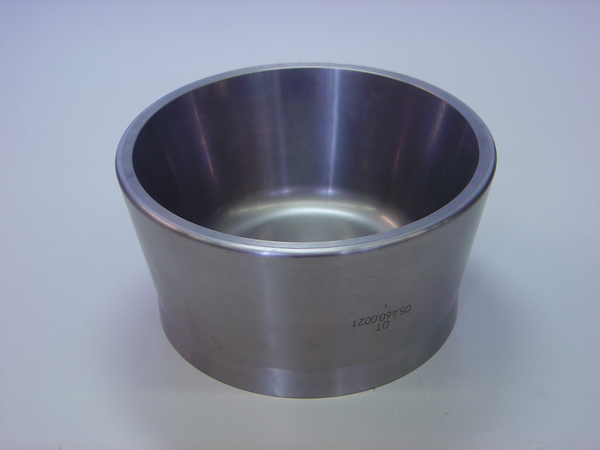

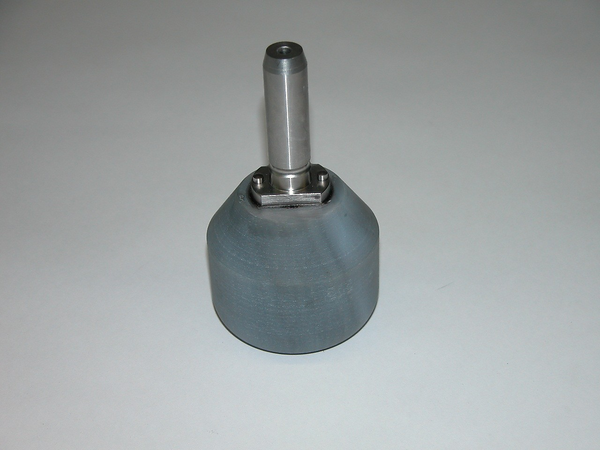

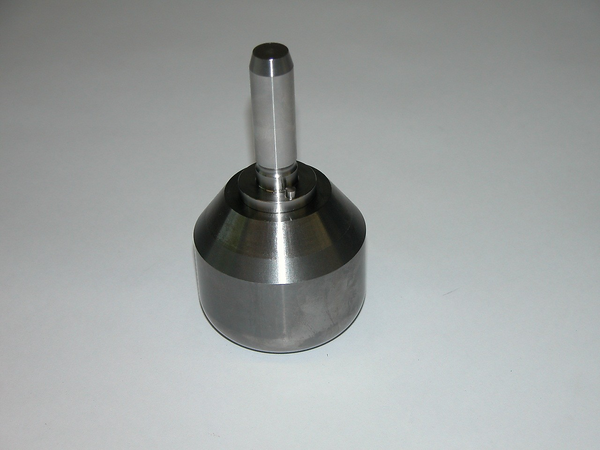

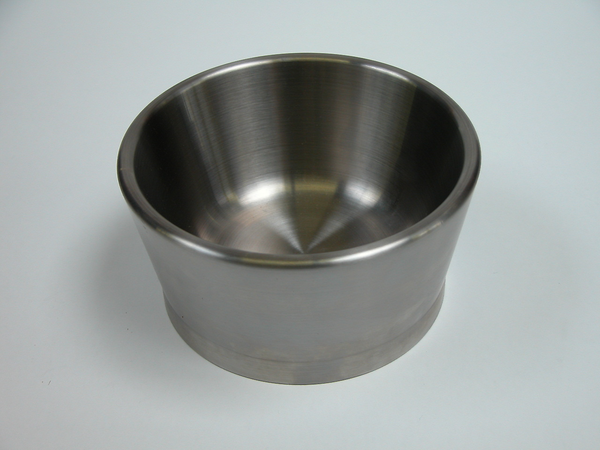

Morteros y manos para RM 200

Ayuda para la elección
Ayuda para la elección
For efficient and contamination-free grinding processes, mortar and pestle are available in 7 different materials (no undesired abrasion):
  • Hardened steel (density 7.6 g/cm3; hardness ≤ 250 HB, medium abrasion resistance):
    typically used for pulverizing medium-hard to hard and brittle samples

  • Stainless steel (density 7.7 g/cm3; hardness ≤ 245 HB, medium abrasion resistance):
    typically used for pulverizing medium-hard to hard and brittle samples. Stainless steel is also used for homogenizing frozen yeast cells.

  • Tungsten carbide (density 14.8 g/cm3; hardness 93.6 HRA; high abrasion resistance):
    used for grinding very hard, brittle sample materials. By using tungsten carbide, contamination of the sample with iron is prevented.

  • Agate (density 2.65 g/cm3; hardness 6.5 – 7 Mohs, low abrasion resistance)
    a highly pure natural material suitable for pulverizing soft to medium-hard or fibrous samples.

  • Sintered aluminum oxide (density 3.9 g/cm3; hardness 1750 HV, medium abrasion resistance):
    a ceramic material suitable for grinding soft to medium-hard or fibrous samples. It is mainly used for heavy-metal-free grinding processes.

  • Zirconium oxide (density 6.05 g/cm3; hardness 1250 HV, high abrasion resistance):
    a ceramic material suitable for pulverizing medium-hard to hard and fibrous samples. It is typically used for heavy-metal-free grinding processes.

  • Hard porcelain (density 2.4 g/cm3; hardness 1200 HV, high abrasion resistance):
    a ceramic material suitable for grinding medium-hard to hard or fibrous samples. It is mainly used for heavy-metal-free grinding or pharmaceutical samples.

Please note:

The grinding tool material should be harder than the sample. For further information on materials please see the document “Material Analyses of Equipment & Accessories“ in the Downloads section.

Acero templado

02.460.0018Mortero

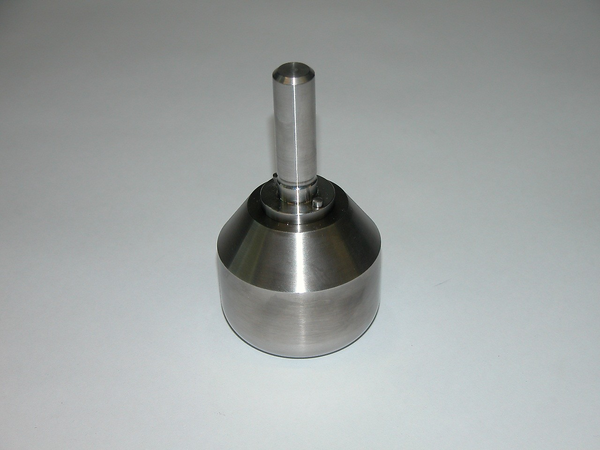

02.461.0112Mano de mortero


acero inoxidable

02.460.0057Mortero

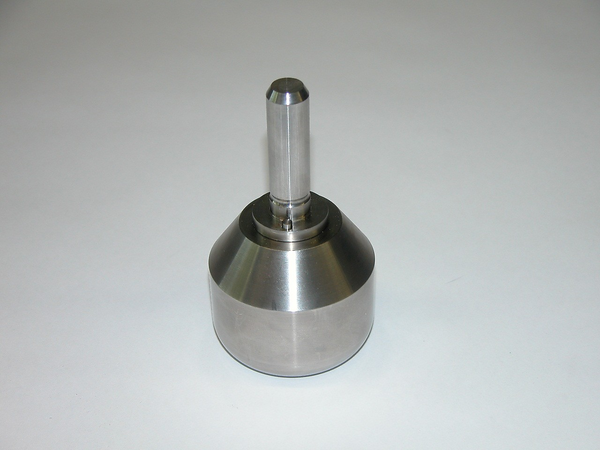

02.461.0113Mano de mortero


Carburo de tungsteno

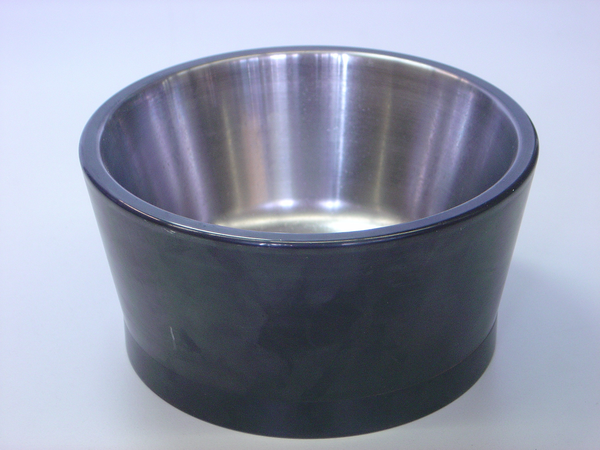

02.460.0021Mortero
02.461.0114Mano de mortero


Ágata

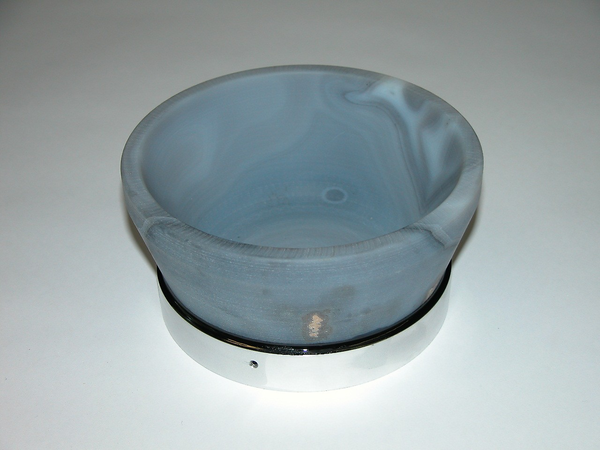

02.460.0098Mortero
02.461.0115Mano de mortero


corindón sinterizado

02.460.0017Mortero

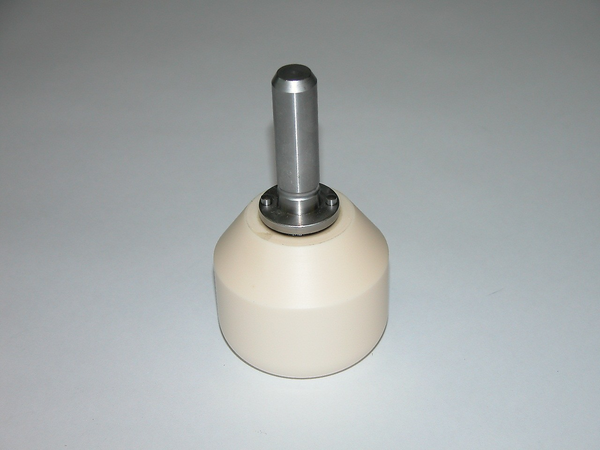

02.461.0116Mano de mortero


Óxido de circonio

02.460.0086Mortero

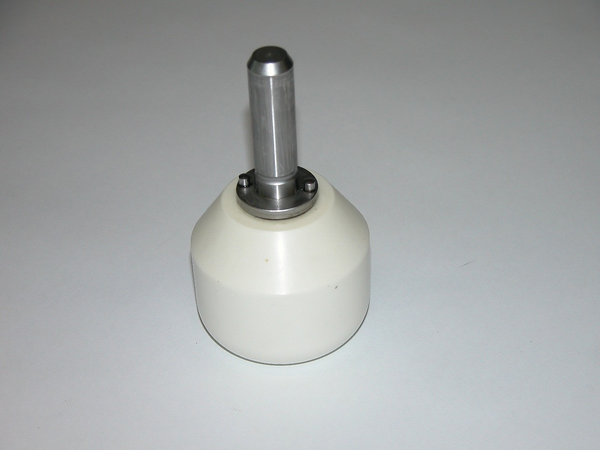

02.461.0117Mano de mortero


porcelana dura

02.460.0016Mortero

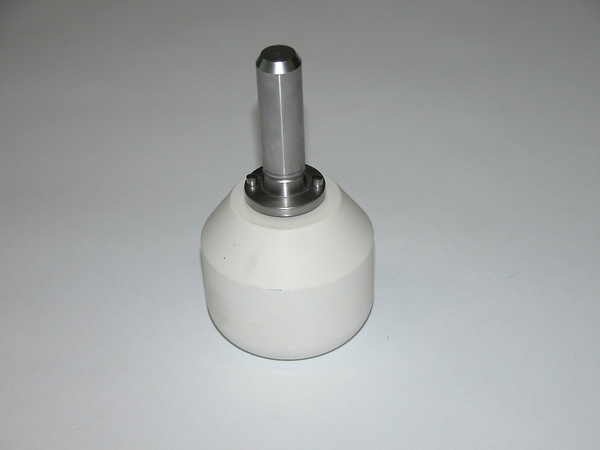

02.461.0118Mano de mortero


Accessories RM 200

Rascadores RM 200

Ayuda para la elección
Ayuda para la elección
Three different scrapers are available.

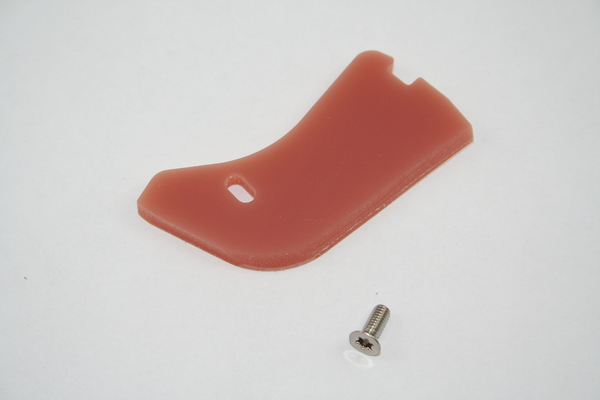

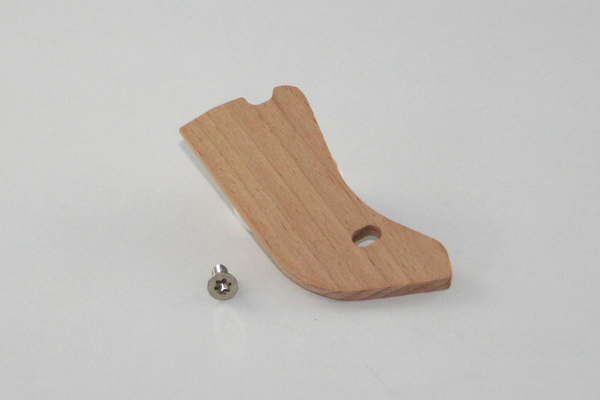

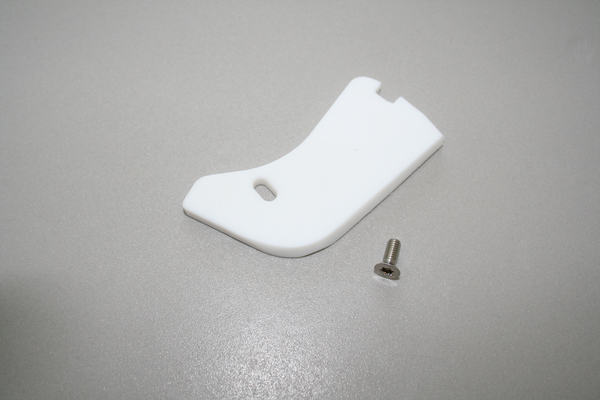

The scraper made of polyurethane (PU) is the standard. The beech wood scraper is especially suitable for pharmaceutical applications. The PTFE scraper is used for cryogenic applications.
22.862.0012Espátula, PU
22.008.0025Espátula, madera de haya
22.008.0024Espátula, PTFE (para moliendas criogénicas)


Additional items RM 200

99.200.0012Documentación IQ/OQ para RM 200
